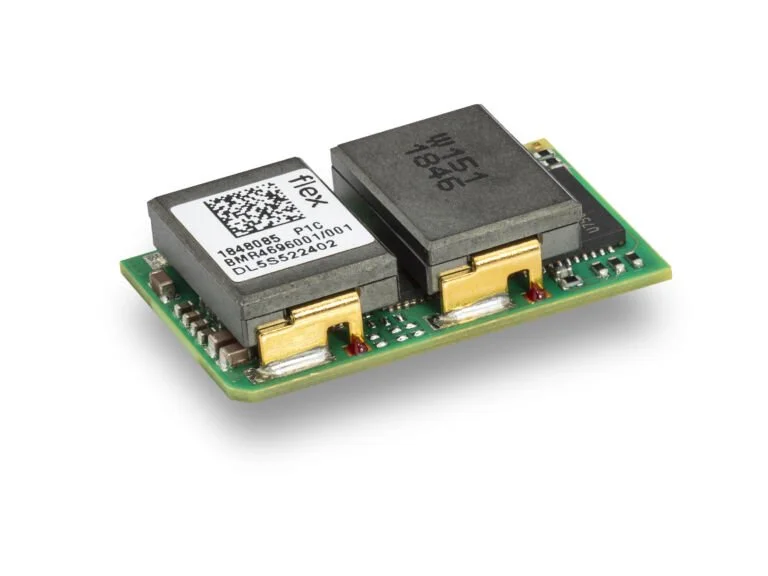

BMR4696001/001 Specifications Series Power Modules Part Number BMR4696001/001 Product Attributes PMBus, Parallel ACS, GCB, Single output Status Active Isolation Non-Isolated Regulation Regulated Digital Interfaces PMBus and GCB Input Voltage (min) 7.5V Input Voltage (max) 14V Output Voltage (typical) 1.2V Output Voltage (min) 0.6V Output Voltage (max) 5.5V Output Power 100W Output Current 50A Paralleling Active Current Sharing Series BMR469 Typical Efficiency 94.3% Length 25.4mm Width 14.5mm Height 5.8mm Package Type Open Frame Mounting Type Solder bump Application Telecom, RFPA, Data Center and Cloud, Industrial, Transportation and railway Images are for illustrative purposes only. Resources Datasheets BMR4696001 Eval Board/Accessory User Guides FPM User Guide PuLS Load USB-PMBus Adapter User Guide FPM User Guide PoL BMR 469 Evaluation Board Rev B FPM User Guide PoL BMR 469 Evaluation Board Rev B Technical Papers TP018: Safety Requirements TP020: Verification & Qualification Considerations TP021: Power Relationships with Less Wires TP022: Loop Compensation & Decoupling Design with the Loop Compensator TP023: NVM Reliability Mechanical Models STEP file – BMR4696001/001 (typ) Safety Product Notice – UL62368 upgrade UL-CSA Test Certificate BMR469 CB Test Certificate BMR469 UL-EU Test Certificate BMR469 Application Notes AN310: Sequencing Configuration AN306: Transient Response Optimization & NLR AN307: PoL Parallel Operation AN320: Snapshot Parameter Capture AN321: Output Filter Impedance Design AN322: In-System Programming Guide AN308: Fault Spreading AN309: Synchronization & Phase Spreading AN302: PMBus Command Set AN319: Repair & Rework Recommendations AN304: Microcontroller Programming Design Notes DN023: Architecture Selection DN022: Output Ripple & Noise Measurement DN028: Thermal Characterization in Sealed Applications DN019: Thermal Characterization DN014: Voltage Monitoring DN013: OnOff Control with RC Pin DN012: Ouput Overvoltage Protection DN007: Output Voltage Alarm Circuit DN026: Start-Up with External Voltage on Output DN002: Power Supply Reliability Aspects DN025: Forced Air Cooling at High Altitude DN024: Power Modules Basics DN030: Powering FPGAs DN029: Conducted EMC Filters DN027: Test Methods Brochures Powering data centers from grid to chip Flyer: DC/DC converters for Network Security & Routers 2026 Telecom DC/DC Solutions 2026 Selection Guide 2026 Data Center DC/DC Solutions 2026 Intel/Enpirion Cross Reference 2021 Flyer: Flex Power Modules’ capabilities Industrial and Railway DC/DC Solutions 2025 Flyer: DC/DC converters for Network Security & Routers 2026 Environmental REACH Statement of Compliance RoHS Statement of Compliance Stock
