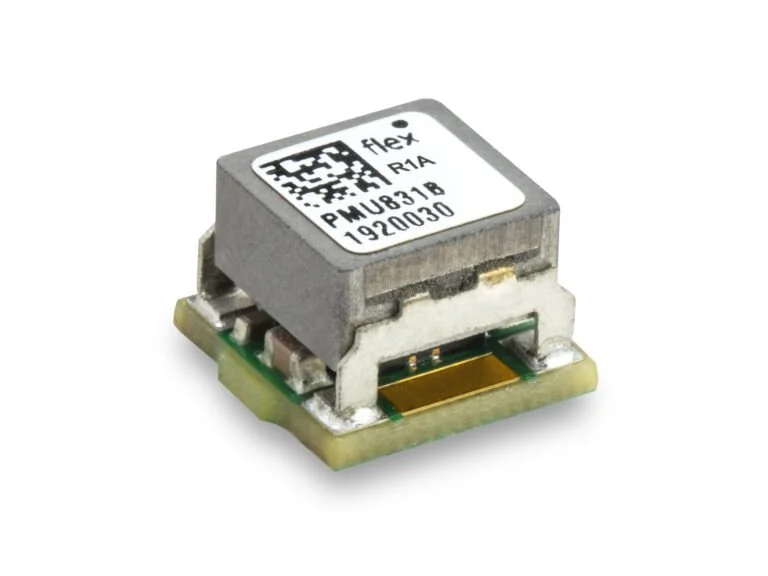

PMU8318 Specifications Series Power Modules Part Number PMU8318 Product Attributes Tracking Status Active Isolation Non-Isolated Regulation Regulated Input Voltage (min) 4.5V Input Voltage (max) 17V Output Voltage (typical) 1V Output Voltage (min) 0.6V Output Voltage (max) 5.5V Output Power 33W Output Current 6A Paralleling None Series PMU Typical Efficiency 95.3% Length 7.5mm Width 7.5mm Height 5.4mm Package Type Open Frame Mounting Type LGA Application Telecom, RFPA, Data Center and Cloud, Industrial, Transportation and railway Images are for illustrative purposes only. Resources Datasheets PMU Eval Board/Accessory User Guides FPM User Guide PoL PMU Evaluation Board FPM User Guide PoL PMU Evaluation Board Technical Papers TP018: Safety Requirements TP020: Verification & Qualification Considerations Thermal Models Thermal model PMU8318 Mechanical Models STEP file – PMU8x18 series (typ) Safety Product Notice – UL62368 upgrade CB Test Certificate PMU/PNA UL-CSA Test Certificate PMU/PNA UL-EU Test Certificate PMU/PNA Application Notes AN317: LGA Design and Assembly AN319: Repair & Rework Recommendations Design Notes DN021: Enabling with RC Pin DN028: Thermal Characterization in Sealed Applications DN019: Thermal Characterization DN014: Voltage Monitoring DN013: OnOff Control with RC Pin DN012: Ouput Overvoltage Protection DN026: Start-Up with External Voltage on Output DN007: Output Voltage Alarm Circuit DN025: Forced Air Cooling at High Altitude DN002: Power Supply Reliability Aspects DN024: Power Modules Basics DN023: Architecture Selection DN022: Output Ripple & Noise Measurement DN029: Conducted EMC Filters DN027: Test Methods Brochures Powering data centers from grid to chip Flyer: DC/DC converters for Network Security & Routers 2026 Telecom DC/DC Solutions 2026 Selection Guide 2026 Data Center DC/DC Solutions 2026 Intel/Enpirion Cross Reference 2021 Flyer: Flex Power Modules’ capabilities Industrial and Railway DC/DC Solutions 2025 Flyer: DC/DC converters for Network Security & Routers 2026 Environmental REACH Statement of Compliance RoHS Statement of Compliance Stock
