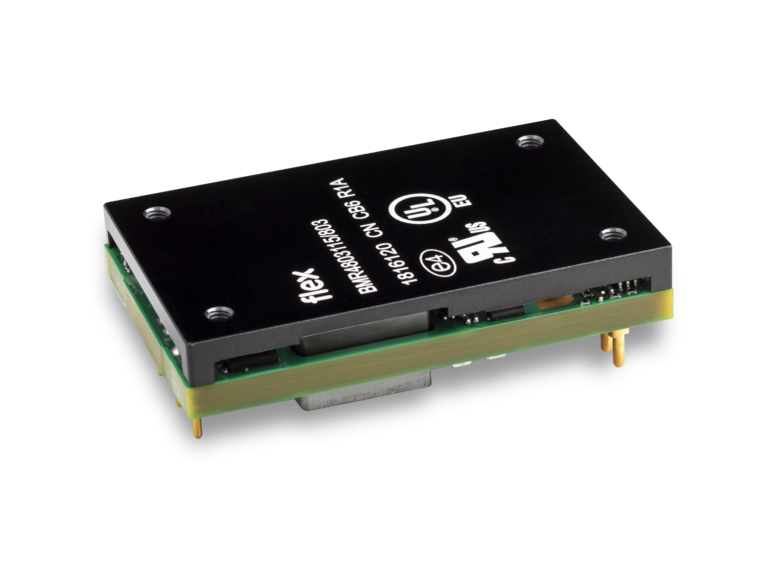

BMR4803114/003 Specifications Series Power Modules Part Number BMR4803114/003 Product Attributes PMBus, HRR, Parallel DLS, DLC, 4-pin digital header, 4.57mm pins Status Discontinued Isolation Isolated Regulation Regulated Digital Interfaces PMBus Input Voltage (min) 40V Input Voltage (max) 60V Output Voltage (typical) 10.4V Output Voltage (min) 8V Output Voltage (max) 12V Output Power 1000W Output Current 96.2A Paralleling Droop Load Sharing Isolation Voltage 1500V Series BMR480 Typical Efficiency 97.3% Length 58.4mm Width 36.83mm Height 14.48mm Package Footprint Quarter Brick Package Type Baseplate Mounting Type TH Application Telecom, Data Center and Cloud Images are for illustrative purposes only. Resources Datasheets BMR480 (40-60Vin, 10.4Vout, 1000W) Product Summary BMR480 variant table Eval Board/Accessory User Guides FPM User Guide PuLS Load USB-PMBus Adapter User Guide High-Power Digital IBC Evaluation Board User Guide High Power Digital IBC Paralleling Test Board User Guide Product Discontinuation Notices Product Discontinuation Notice – BMR480 06/25/2026 Technical Papers TP020: Verification & Qualification Considerations TP022: Loop Compensation & Decoupling Design with the Loop Compensator TP023: NVM Reliability TP018: Safety Requirements Thermal Models Thermal Model – BMR480 Safety Product Notice – UL62368 upgrade UL-EU Test Certificate BMR480/490/491/492 CB Test Certificate BMR480/490/491/492 UL-CSA Test Certificate BMR480/490/491/492 Application Notes AN302: PMBus Command Set AN319: Repair & Rework Recommendations AN304: Microcontroller Programming AN324: Paralleling with Droop Load Sharing (DLS) AN327: Peak Power and Transient Peak Power AN326: Event data recorder for digital IBCs Design Notes DN028: Thermal Characterization in Sealed Applications DN019: Thermal Characterization DN015: 48V Enable with RC Pin DN014: Voltage Monitoring DN013: OnOff Control with RC Pin DN026: Start-Up with External Voltage on Output DN012: Ouput Overvoltage Protection DN025: Forced Air Cooling at High Altitude DN007: Output Voltage Alarm Circuit DN024: Power Modules Basics DN002: Power Supply Reliability Aspects DN023: Architecture Selection DN022: Output Ripple & Noise Measurement DN021: Enabling with RC Pin DN029: Conducted EMC Filters DN027: Test Methods Brochures Powering data centers from grid to chip Telecom DC/DC Solutions 2026 Data Center DC/DC Solutions 2026 Selection Guide 2026 Flyer: Flex Power Modules’ capabilities Environmental REACH Statement of Compliance RoHS Statement of Compliance Stock
