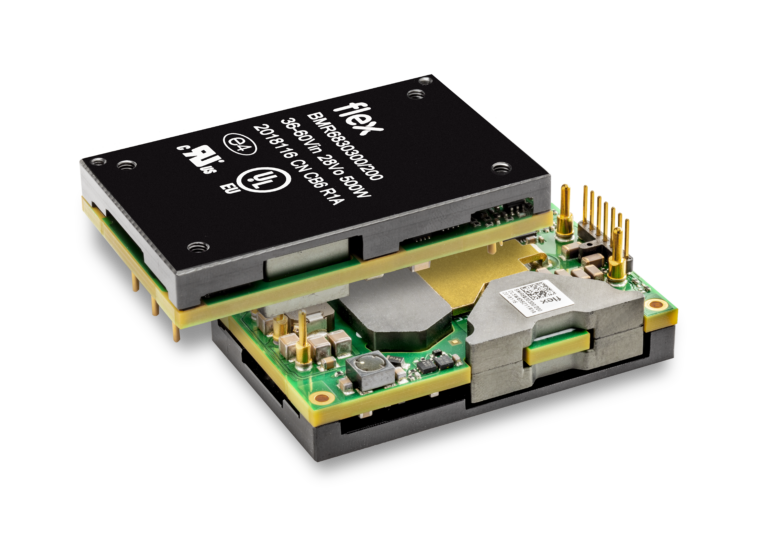

BMR6830300/200 Specifications Series Power Modules Part Number BMR6830300/200 Product Attributes PMBus, 7-pin digital header Status Active Isolation Isolated Regulation Regulated Digital Interfaces PMBus Input Voltage (min) 36V Input Voltage (max) 60V Output Voltage (typical) 28V Output Voltage (min) 18V Output Voltage (max) 32V Output Power 500W Output Current 17.9A Paralleling None Isolation Voltage 1500V Series BMR683 Typical Efficiency 95.5% Length 58.4mm Width 36.8mm Height 12.7mm Package Footprint Quarter Brick Package Type Baseplate Mounting Type TH Application Telecom, RFPA Images are for illustrative purposes only. Resources Datasheets BMR683 Eval Board/Accessory User Guides USB-PMBus Adapter User Guide Technical Papers TP018: Safety Requirements TP020: Verification & Qualification Considerations TP022: Loop Compensation & Decoupling Design with the Loop Compensator TP023: NVM Reliability Mechanical Models STEP file – BMR6830300/200 (typ) Safety Product Notice – UL62368 upgrade CB Test Certificate BMR683 UL-CSA Test Certificate BMR683 UL-EU Test Certificate BMR683 Application Notes AN319: Repair & Rework Recommendations AN304: Microcontroller Programming AN302: PMBus Command Set Design Notes DN028: Thermal Characterization in Sealed Applications DN019: Thermal Characterization DN012: Ouput Overvoltage Protection DN002: Power Supply Reliability Aspects DN025: Forced Air Cooling at High Altitude DN024: Power Modules Basics DN022: Output Ripple & Noise Measurement DN029: Conducted EMC Filters DN027: Test Methods Brochures Flyer: DC/DC converters for RF & Microwave Power Amplifier 2026 Flyer: DC/DC converters for RF & Microwave Power Amplifier 2025 Telecom DC/DC Solutions 2026 Selection Guide 2026 Flyer: Flex Power Modules’ capabilities Environmental REACH Statement of Compliance RoHS Statement of Compliance Stock
