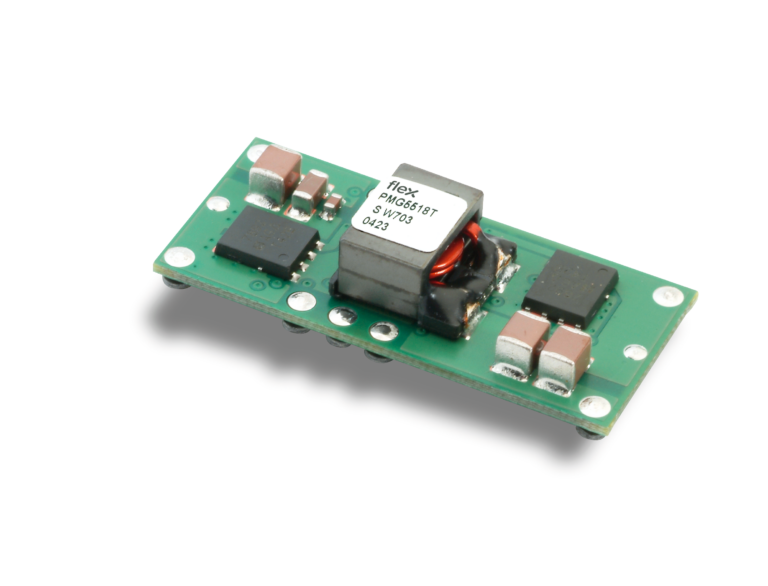

PMG5518TP Specifications Series Power Modules Part Number PMG5518TP Product Attributes Legacy, Tracking Status Discontinued Isolation Non-Isolated Regulation Regulated Input Voltage (min) 4.5V Input Voltage (max) 5.5V Output Voltage (min) 0.8V Output Voltage (max) 3.6V Output Power 54W Output Current 15A Paralleling None Series PMG Typical Efficiency 95% Length 34.8mm Width 15.75mm Height 9mm Package Type Open Frame Mounting Type TH Application Telecom, Industrial Images are for illustrative purposes only. Resources Datasheets PMG5000 Product Discontinuation Notices Product Discontinuation Notice – PME, PMF and PMG series 11/29/2022 Technical Papers TP018: Safety Requirements TP020: Verification & Qualification Considerations Safety Product Notice – UL62368 upgrade Application Notes AN319: Repair & Rework Recommendations Design Notes DN012: Ouput Overvoltage Protection DN026: Start-Up with External Voltage on Output DN007: Output Voltage Alarm Circuit DN025: Forced Air Cooling at High Altitude DN002: Power Supply Reliability Aspects DN024: Power Modules Basics DN023: Architecture Selection DN022: Output Ripple & Noise Measurement DN021: Enabling with RC Pin DN028: Thermal Characterization in Sealed Applications DN019: Thermal Characterization DN014: Voltage Monitoring DN013: OnOff Control with RC Pin DN027: Test Methods DN029: Conducted EMC Filters Brochures POLA Cross Reference 2019 Telecom DC/DC Solutions 2026 Data Center DC/DC Solutions 2026 POLA Cross Reference Flyer: Flex Power Modules’ capabilities Industrial and Railway DC/DC Solutions 2025 Environmental REACH Statement of Compliance RoHS Statement of Compliance Stock
