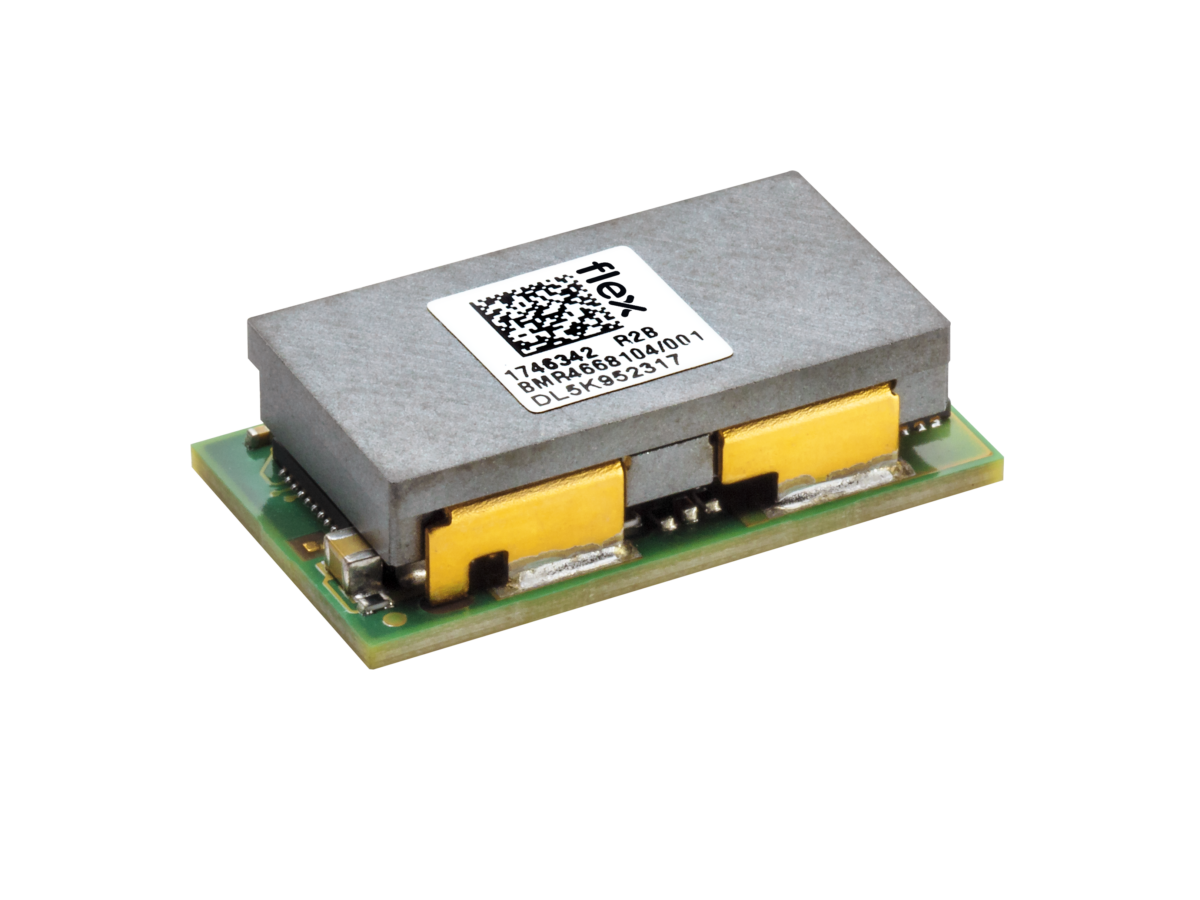

BMR466
60A Non-Isolated Digital DC/DC PoL Converter
The BMR466 series is a digital non-isolated DC/DC PoL converter in a 25.1×14.1×7.0mm package. They offer a Vout range between 0.6-1.8V and a wide Vin range from 4.5-14V. It’s typically used in Intermediate Bus Architectures found in industrial, telecom and datacom applications.
These converters can deliver up to 60A and have a high efficiency up to 94.9% typical at 5Vin / 1.8Vout / 50% load.
The BMR466 series can operate over a temperature range from -40°C up to +125°C and offers an MTBF of up to 50 million hours.
Standard features for this model include configuration, control and monitoring via PMBus®, optional dynamic loop compensation (DLC)*, frequency synchronization, phase spreading/interleaving, voltage tracking and voltage margining.
* DLC suitable for standalone operation only, NOT suitable for parallel mode.
The BMR466 is supported by our own Flex Power Designer tool.
Evaluation of the BMR466 can be performed using the ROA17044 Eval Board.
